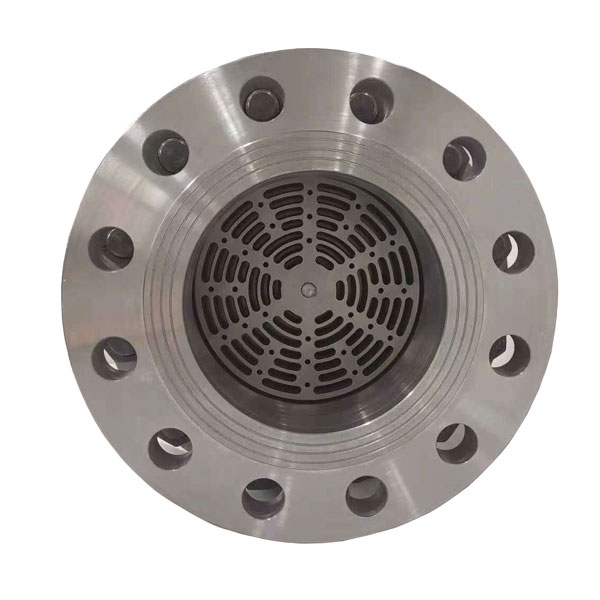

Peek Valve Plate
PRODUCTPeek Valve Plate
PEEK is a special high temperature resistant thermoplastic polymer material developed by the British ICI company. Because of its high temperature resistance, corrosion resistance, chemical resistance, and abrasion resistance, it has become a key material in many high-tech fields.
Its main technical level Indicators and characteristics such as
1. Technical performance indicators of polyether ether ketone:
Main technical performance indicators of PEEK engineering plastic valve disc
Test item |
Unit |
Data |
Test method |
Tensile strength Mpa |
Mpa |
≥75 |
GB/T1040 |
Flexural strength Mpa into |
Mpa |
入180 |
GB/T9341 |
Flexural modulus of elasticity Gpa |
Gpa |
≥7.5 |
GB/T9341 |
Impact strength (unnotched) |
KJ/m2 |
≥35 |
ASTMD256 |
Impact strength (notched) |
KJ/m2 |
≥20 |
ASTMD256 |
Heat distortion temperature |
℃ |
≥200 |
ASTMD64 |
Rockwell hardness (HRM) |
|
≥100 |
ASTMD785 |
Density |
g/cm3 |
1.45 |
|
Melting point |
℃ |
334 |
|
1. Main performance
Melting point: 334 degrees Tensile strength: 97.38MPa Bending strength: 134MPa
2. Main physical properties
1. Heat resistance
The long-term continuous use temperature evaluation method, the UL temperature index measurement value is 250°C.
2. Chemical resistance
PEEK only dissolves in concentrated sulfuric acid and has good chemical resistance.
Some test results are shown in Table 1: Table 1 Chemical resistance of PEEK (under 500kg/CM2 stress)
